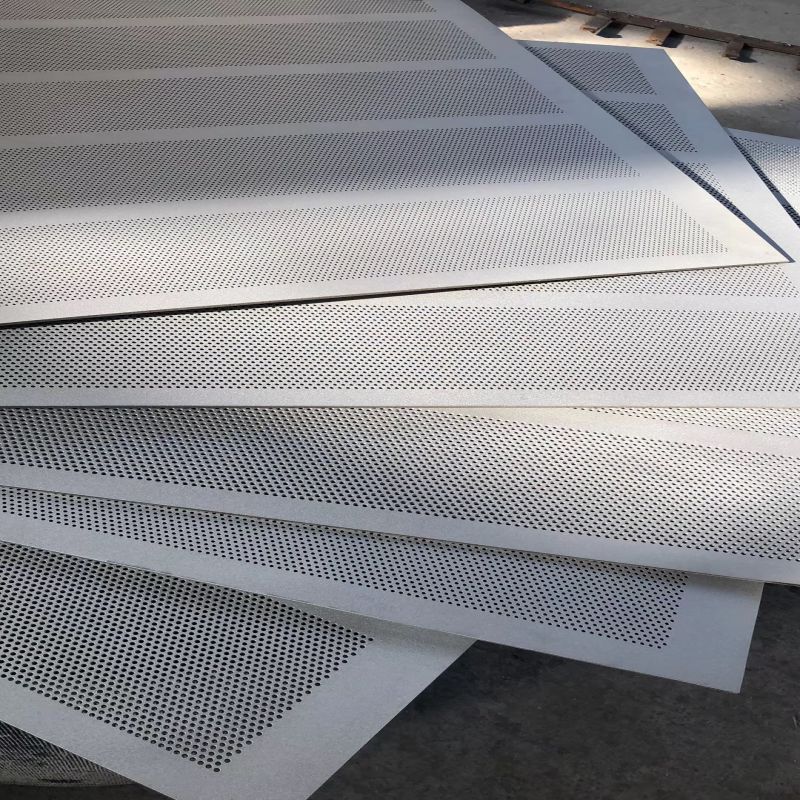

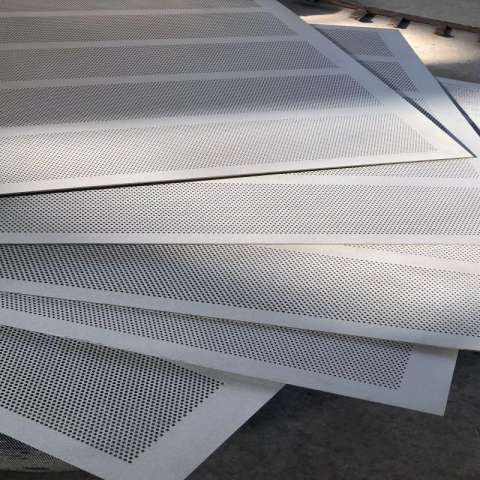

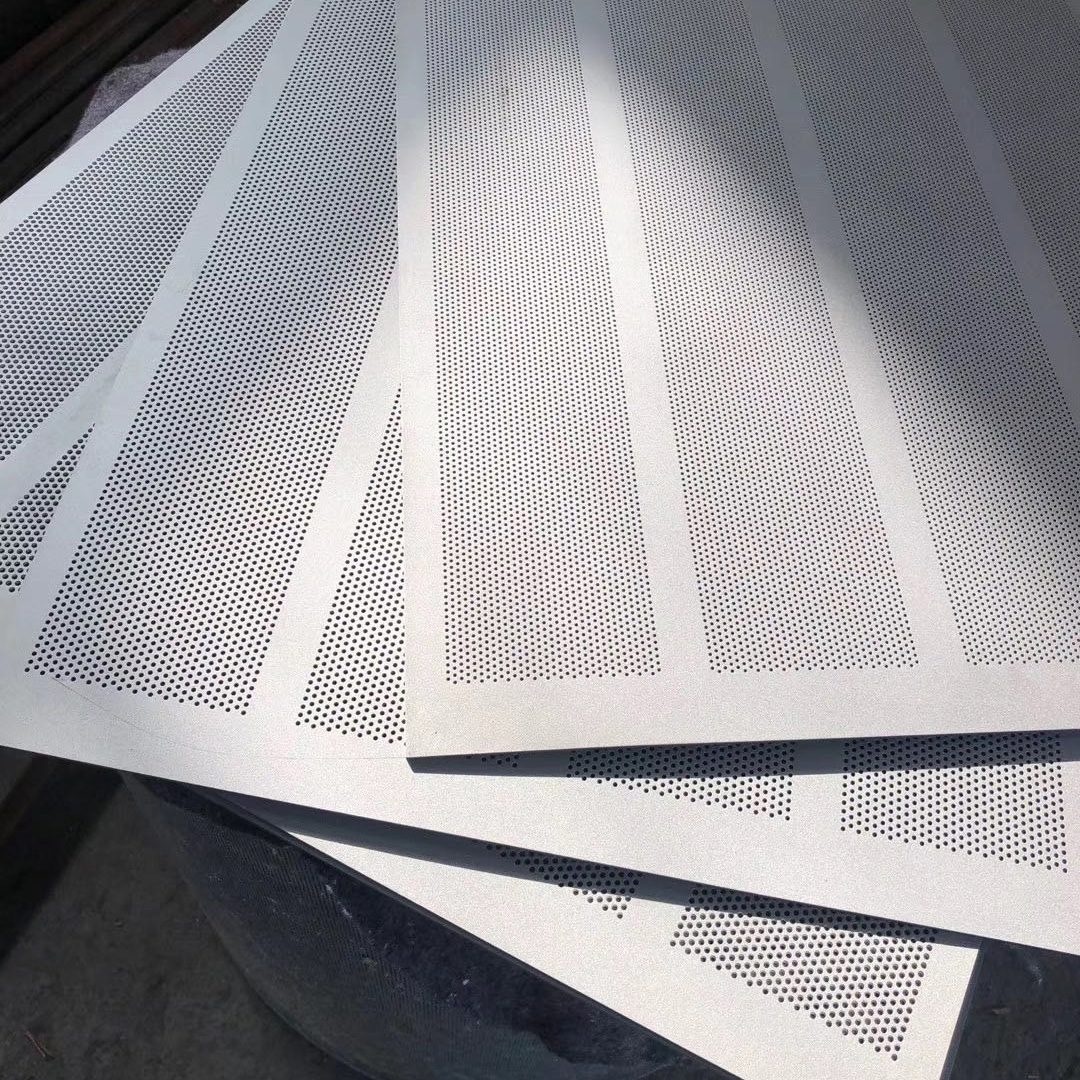

Perforated Metal Sheet has no specified minimum quantity of any alloying element and contains only an incidental amount of any element other than carbon, silicon, manganese, copper, sulphur and phosphorus.
It is the most corrosive and least expensive of the commonly perforated metals.

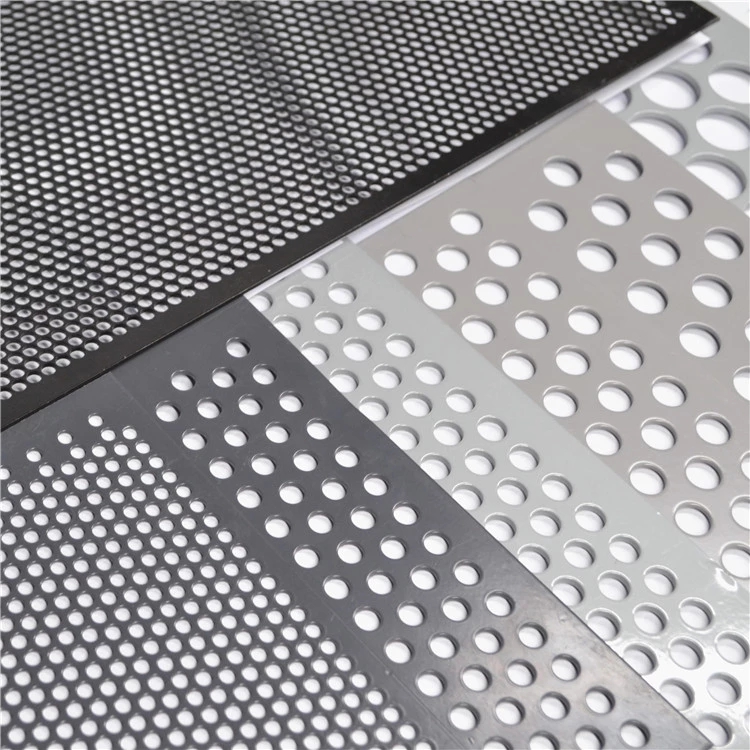

Many kinds of Hole patterns are available.
Features & Benefits of Perforated Metal Sheet

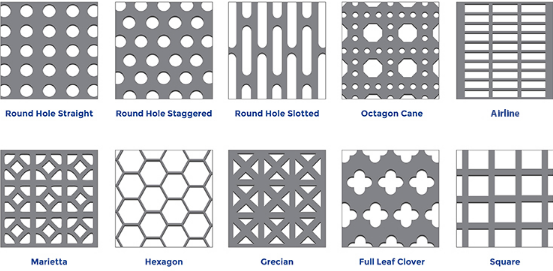

*Ten (10) unique perforation patterns available
*Variety of gauges and materials
*High strength-to-weight ratio
*Economical
*Versatile
Functional and aesthetic appeal
*Ventilation for air, light, sound, gases
*Screening of fluids
*Pressure equalization or control
*Safety and security
*Easy to cut and fabricate
Perforated Metal Sheet Materials
*Aluminum
*Steel
*Stainless Steel
Perforated Metal Sheet Sizes
Cut to size—specify custom width/length
24” x 36”
24” x 48”
36” x 48”
36” x 84”
36” x 96”
36” x 120”
48” x 48”
48” x 84”
48” x 120”
Application: Used for its variety of holes sizes, percentage of open area, high strength-to-weight ratio, and aesthetic appeal, perforated sheet is popular for a broad spectrum of uses, such as enclosures, partitions, sign panels, guards, screens, and more.

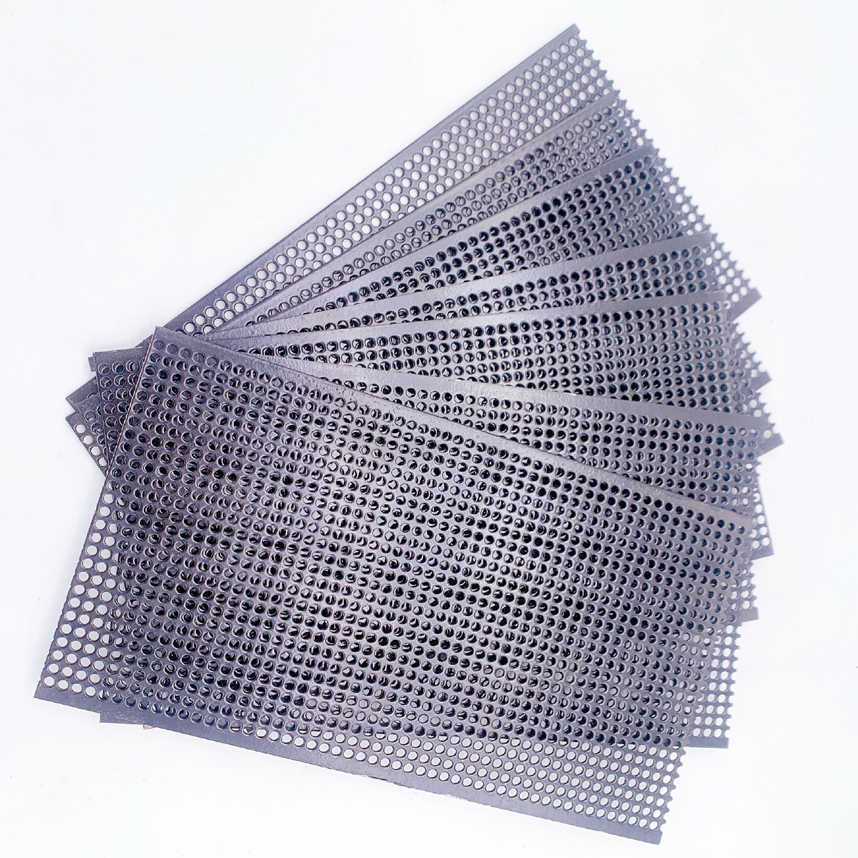

Micron perforated metal sheet:
Material: copper plate, iron plate, steel plate, nickel plate, stainless steel, alloy, etc.
(except aluminum, tin and zinc)
Mesh shape: vertical hole, taper hole, horn hole, step hole, round hole, rectangular hole, shaped hole
Hole type: through hole, vertical through hole, conical through hole, center step through hole or edge step part.
Chemical etching products is mainly.
Technical indicators:
1. Minimum machining size: 0.1mm round hole, 0.15mm long square hole seam width, 0.02mm at most (interval)
2. Maximum processing area :580*750
3. Thickness of the processed sheet :2MM-- 0.05mm (especially suitable for foil sheets below 0.5mm).
4. Graphic positioning accuracy :±0.01mm
5.The aperture must be larger than the plate thickness except laser perforated.
USES: widely used in petroleum, chemical industry, food, juice machine mesh, soybean milk machine mesh, pharmaceutical precision filter mesh, filter plate, filter cartridge, filter;
Electric industry metal leakage plate, cover plate, plane pin, lead frame;
Precision optical and mechanical plane parts, spring parts, mobile phone parts;
Characteristics of chemical etching products: Compared with mechanical punching and laser punching, the product quality has the following outstanding characteristics:
1. There are no restrictions on complex patterns and shapes beginning with arbitrary geometry.
No matter how complex the hole shape or pattern is, it will be processed in one flash without increasing the production cost.
2. Chemical etching is a double-sided simultaneous processing technology, the product surface (positive and negative) smooth, no protruding, no pit, no burr, no warping, no flat mesh deformation.
No need to polish, polish, press after self-care process.
3. Fine machining size (less than 1MM round, 0.02mm line width), accurate positioning (± 0.01mm) uniform and consistent.
4. Short production cycle, quick response and convenient design modification.
